產品編號：GEWZ…ES 12.7～152.4
??????????GEWZ...ES-2RS 19.05～152.4
滑動磨擦副： 鋼/鋼

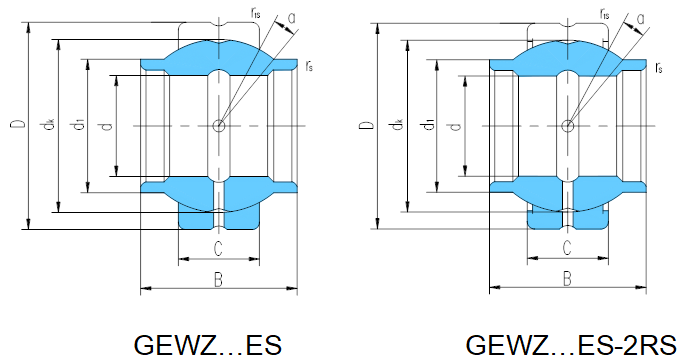

產品特點：GEWZ...ES 產品特點與GEEW…ES系列相同，但為英制尺寸。
??????????GEWZ...ES-2RS 產品特點與GEEM…ES-2RS系列相同，但為英制尺寸。
使用溫度范圍：GEWZ...ES -50℃～+150℃
??????????????GEWZ...ES-2RS -30℃～+130℃
????
軸 承 型 號 Bearing number | 外 形 尺 寸 Dimensions mm/inch | 額定載荷 Load ratings kN | 重 量 Weight ≈kg | ||||||||||
d | D | B | C | d1 max | dk | rs min | r1s min | α? ≈ | 動載荷 Dynamic | 靜載荷 Static | |||
GEWZ12ES |
| 12.700 | 22.225 | 19.050 | 9.525 | 15.875 | 18 | 0.15 | 0.6 | 5 | 13 | 41 | 0.024 |
0.5 | 0.875 | 0.75 | 0.375 | 0.625 | 0.709 | 0.006 | 0.024 | ||||||
GEWZ15ES |
| 15.875 | 26.988 | 23.800 | 11.913 | 19.812 | 23 | 0.15 | 0.6 | 5 | 22 | 65 | 0.038 |
0.625 | 1.0625 | 0.937 | 0.469 | 0.78 | 0.906 | 0.006 | 0.024 | ||||||
GEWZ19ES | GEWZ19ES-2RS | 19.050 | 31.750 | 28.575 | 14.275 | 23.368 | 27.5 | 0.3 | 0.6 | 5 | 31 | 95 | 0.064 |
0.75 | 1.25 | 1.125 | 0.562 | 0.92 | 1.083 | 0.012 | 0.024 | ||||||
GEWZ22ES | GEWZ22ES-2RS | 22.225 | 36.513 | 33.325 | 16.662 | 27.178 | 32 | 0.3 | 0.6 | 5 | 42 | 127 | 0.098 |
0.875 | 1.4375 | 1.312 | 0.656 | 1.07 | 1.26 | 0.012 | 0.024 | ||||||
GEWZ25ES | GEWZ25ES-2RS | 25.400 | 41.275 | 38.100 | 19.050 | 30.988 | 36.5 | 0.3 | 0.6 | 5 | 56 | 166 | 0.142 |
1 | 1.625 | 1.5 | 0.75 | 1.22 | 1.437 | 0.012 | 0.024 | ||||||
GEWZ31ES | GEWZ31ES-2RS | 31.750 | 50.800 | 47.625 | 23.800 | 38.735 | 45.5 | 0.6 | 0.6 | 5 | 86 | 260 | 0.271 |
1.25 | 2 | 1.875 | 0.937 | 1.525 | 1.791 | 0.024 | 0.024 | ||||||
GEWZ34ES | GEWZ34ES-2RS | 34.925 | 55.563 | 52.375 | 26.187 | 42.418 | 49 | 0.6 | 1 | 5 | 102 | 310 | 0.373 |
1.375 | 2.1875 | 2.062 | 1.031 | 1.67 | 1.929 | 0.024 | 0.04 | ||||||
GEWZ38ES | GEWZ38ES-2RS | 38.100 | 61.913 | 57.150 | 28.575 | 46.99 | 54.7 | 0.6 | 1 | 5 | 125 | 375 | 0.494 |
1.5 | 2.4375 | 2.25 | 1.125 | 1.85 | 2.154 | 0.024 | 0.04 | ||||||
GEWZ44ES | GEWZ44ES-2RS | 44.450 | 71.438 | 66.675 | 33.325 | 54.991 | 63.9 | 0.6 | 1 | 5 | 170 | 510 | 0.762 |
1.75 | 2.8125 | 2.625 | 1.312 | 2.165 | 2.516 | 0.024 | 0.04 | ||||||
GEWZ50ES | GEWZ50ES-2RS | 50.800 | 80.963 | 76.200 | 38.100 | 62.484 | 73 | 0.6 | 1 | 5 | 224 | 670 | 1.11 |
2 | 3.1875 | 3 | 1.5 | 2.46 | 2.874 | 0.024 | 0.04 | ||||||
GEWZ57ES | GEWZ57ES-2RS | 57.150 | 90.488 | 85.725 | 42.850 | 70.104 | 82 | 0.6 | 1 | 5 | 280 | 850 | 1.57 |
2.25 | 3.5625 | 3.375 | 1.687 | 2.76 | 3.228 | 0.024 | 0.04 | ||||||
GEWZ63ES | GEWZ63ES-2RS | 63.500 | 100.013 | 95.250 | 47.625 | 77.724 | 92 | 1 | 1 | 5 | 355 | 1060 | 2.15 |
2.5 | 3.9375 | 3.75 | 1.875 | 3.06 | 3.622 | 0.04 | 0.04 | ||||||
GEWZ69ES | GEWZ69ES-2RS | 69.850 | 111.125 | 104.775 | 52.375 | 85.852 | 100 | 1 | 1 | 5 | 415 | 1250 | 2.9 |
2.75 | 4.375 | 4.125 | 2.062 | 3.38 | 3.937 | 0.04 | 0.04 | ||||||
GEWZ76ES | GEWZ76ES-2RS | 76.200 | 120.650 | 114.300 | 57.150 | 93.345 | 109.5 | 1 | 1 | 5 | 500 | 1500 | 3.59 |
3 | 4.75 | 4.5 | 2.25 | 3.675 | 4.311 | 0.04 | 0.04 | ||||||
GEWZ82ES | GEWZ82ES-2RS | 82.550 | 130.175 | 123.825 | 61.900 | 101.219 | 119 | 1 | 1 | 5 | 585 | 1760 | 4.69 |
3.25 | 5.125 | 4.875 | 2.437 | 3.985 | 4.685 | 0.04 | 0.04 | ||||||
GEWZ88ES | GEWZ88ES-2RS | 88.900 | 139.700 | 133.350 | 66.675 | 109.22 | 128 | 1 | 1 | 5 | 680 | 2040 | 5.86 |
3.5 | 5.5 | 5.25 | 2.625 | 4.3 | 5.039 | 0.04 | 0.04 | ||||||
GEWZ95ES | GEWZ95ES-2RS | 95.250 | 149.225 | 142.875 | 71.425 | 116.586 | 137 | 1 | 1 | 5 | 780 | 2360 | 7.11 |
3.75 | 5.875 | 5.625 | 2.812 | 4.59 | 5.394 | 0.04 | 0.04 | ||||||
GEWZ101ES | GEWZ101ES-2RS | 101.600 | 158.750 | 152.400 | 76.200 | 124.587 | 146 | 1 | 1 | 5 | 900 | 2650 | 8.56 |
4 | 6.25 | 6 | 3 | 4.905 | 5.748 | 0.04 | 0.04 | ||||||
GEWZ114ES | GEWZ114ES-2RS | 114.300 | 177.800 | 171.450 | 85.725 | 140.335 | 164.5 | 1 | 1 | 5 | 1120 | 3400 | 12.24 |
4.5 | 7 | 6.75 | 3.375 | 5.525 | 6.476 | 0.04 | 0.04 | ||||||
GEWZ127ES | GEWZ127ES-2RS | 127.000 | 196.850 | 190.500 | 95.250 | 155.705 | 183 | 1 | 1 | 5 | 1400 | 4150 | 16.63 |
5 | 7.75 | 7.5 | 3.75 | 6.13 | 7.205 | 0.04 | 0.04 | ||||||
GEWZ152ES | GEWZ152ES-2RS | 152.400 | 222.250 | 209.550 | 104.775 | 178.308 | 207 | 1 | 1 | 5 | 1730 | 5200 | 20.7 |
6 | 8.75 | 8.25 | 4.125 | 7.02 | 8.15 | 0.04 | 0.04 | ||||||
